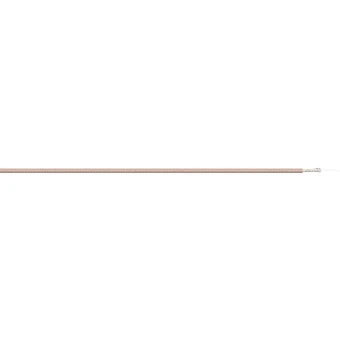

Coaxial - RG-178 B/U 500 M
Add to selection
General information
Ordercode YESSS
1801-3279
Product code
2170002/500
EAN code
4044774851051
Product group
Coaxial cable
Brand
UNITRONIC®
Type
Coaxial - RG-178 B/U 500 M
Coaxial - RG-178 B/U 500 M
Coaxial - RG-178 B/U 500 M
STOCK
IN STOCK
0 m
Product description
Koaxialkabel Koaxialkabel; RG 178 B/U; Nennwellenwiderstand: 50; FEP; 0.3 mm; feste Verlegung; -55 °C bis 250 °C; transparent
Product specifications
Characteristic impedance
50 Ohm
Inner conductor material
Copper
Outer diameter approximate
1.91 mm
Material outer sheath
Other
Specification material outer sheath
Other
Colour outer sheath
Other
Reaction-to-fire according to EN 13501-6: Class
None
Reaction-to-fire according to EN 13501-6: Smoke production
None
Permitted cable outer temperature after assembling without vibration
-55 - 250 °C
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
None
Reaction-to-fire according to EN 13501-6: Acidity
None
Min. permitted bending radius, moving application/free movement
19.1 mm
Min. permitted bending radius, stationary application/permanent installation
11.5 mm
Weight
9 kg/km
