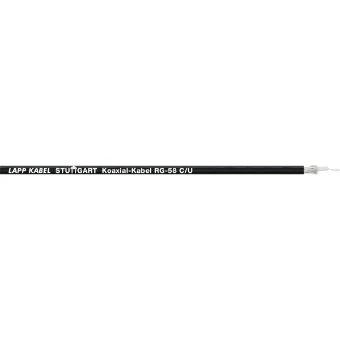

Coaxial - RG 58 C/U 100 M
Add to selection
General information
Ordercode YESSS
1798-9066
Product code
2170000/100
EAN code
4044774748443
Product group
Coaxial cable
Brand
UNITRONIC®
Type
Coaxial - RG 58 C/U 100 M
Coaxial - RG 58 C/U 100 M
Coaxial - RG 58 C/U 100 M
STOCK
IN STOCK
0 m
Product description
Koaxialkabel Koaxialkabel; RG 58 C/U; Nennwellenwiderstand: 50; PVC; 0.9 mm; feste Verlegung; -40 °C bis 80 °C; schwarz
Product specifications
Characteristic impedance
50 Ohm
Inner conductor material
Copper
Inner conductor surface
Tinned
Outer diameter approximate
4.95 mm
Material outer sheath
Polyvinyl chloride (PVC)
Specification material outer sheath
Other
Colour outer sheath
Black
Reaction-to-fire according to EN 13501-6: Class
None
Reaction-to-fire according to EN 13501-6: Smoke production
None
Permitted cable outer temperature after assembling without vibration
-40 - 80 °C
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
None
Reaction-to-fire according to EN 13501-6: Acidity
None
Min. permitted bending radius, moving application/free movement
49.5 mm
Min. permitted bending radius, stationary application/permanent installation
29.7 mm
Weight
38 kg/km
Product information
